Loadbinders

Loadbinders

kastanies 762

Ever ratchet type loadbinders is marked with:

  • Chain diameter
  • Unsuitability for lifting
  • Lashing capacity
  • Minimum breaking load

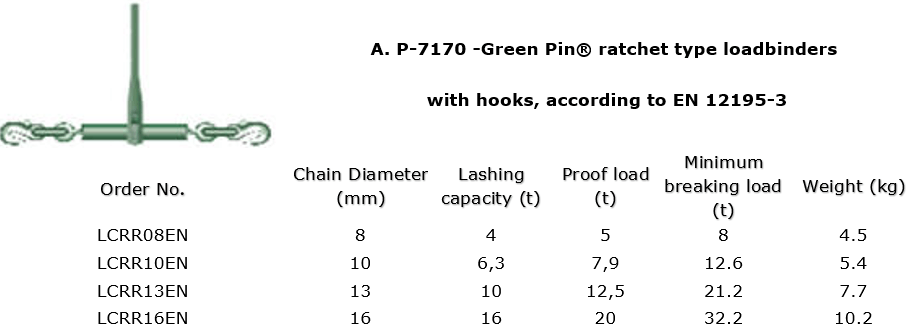

A.Green Pin ratchet type loadbinders

with hooks, according to EN 12195-3

A Loadbinders opt 2

With two hooks

  • Construction material: drop forged/cast steel
  • Safety factor: 2 X Lashing capacity
  • Finish: painted red
  • Certificates: Provided according to EN 12195-3

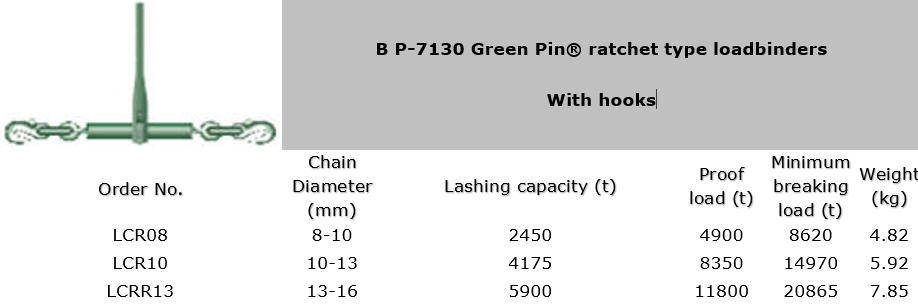

B. Green Pin ratchet type loadbinders

with hooks

B Loadbinders opt

With two hooks

  • Construction material: drop forged/cast steel
  • Safety factor: MBL equals 3.5 X Lashing capacity
  • Finish: painted green paint
  • Certificates: Provided.

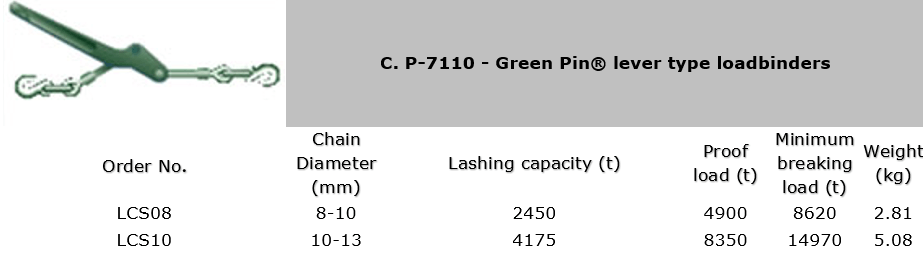

C. Green Pin lever type loadbinders

with hooks

C Loadbinders opt 2

With two hooks

  • Construction material: drop forged/cast steel
  • Safety factor: MBL equals 3.5 X Lashing capacity
  • Finish: painted green paint
  • Certificates: Provided.
